WPI Pumps, Microinjection
微/奈米/注射泵及器材

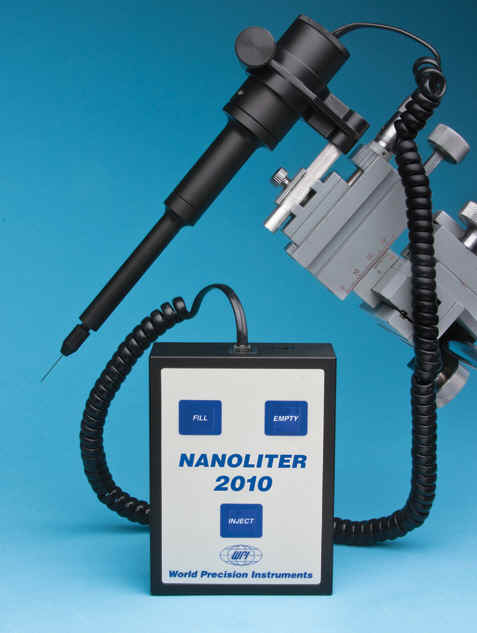

■ Nanoliter 2010 Injector 納升微量注射器
•Microprocessor-controlled injector
•Uses direct piston displacement
•Filling and injection speeds: 23nL/sec and 46 nL/sec
•Optional controller or footswitch

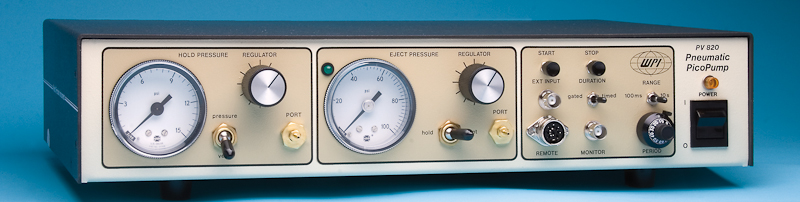

•Regulated Hold and Ejection Pressure
•Carefully regulated air pressures for securing
cells and injecting them with fluid
•Pressure Input: 0-150 psi
•Pressure Output: 0.3-90 psi
•Regulated Hold, Ejection and Vacuum Pressure
•Carefully regulated air pressures for securing
cells and injecting them with fluid
•Pressure Input: 0-150 psi
•Pressure Output: 0.3-90 psi

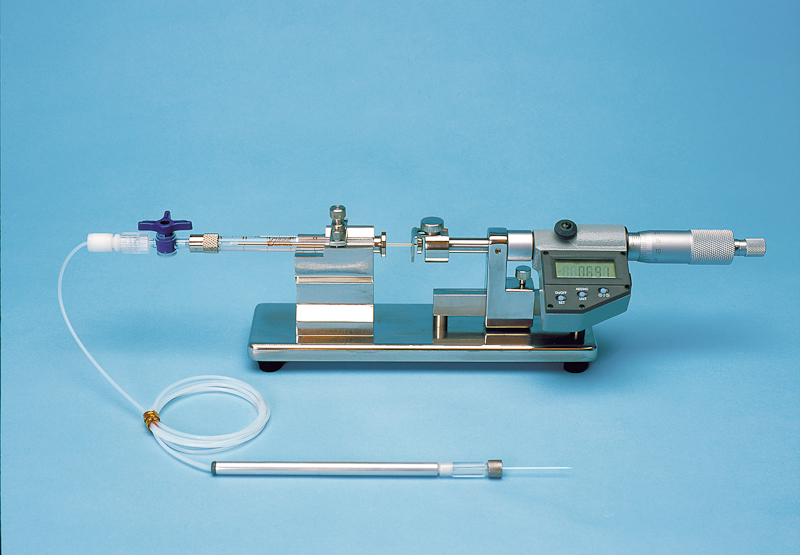

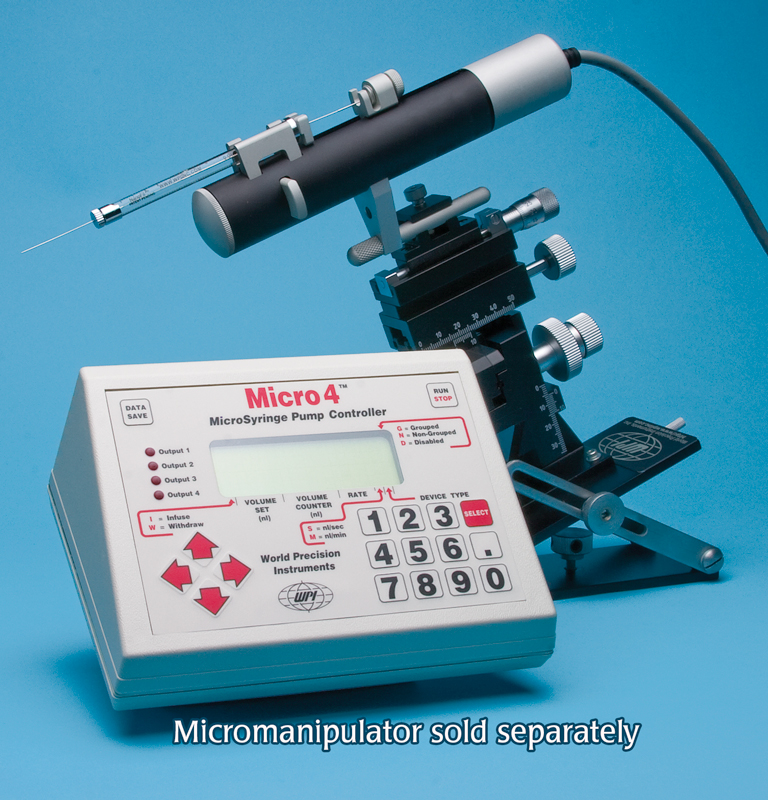

■ UMP3-2 UltraMicroPump (UMP3) (two)
with SYS-Micro4 Controller
•Versatile injector uses microsyringes to deliver picoliter
volumes
•Syringes are easily installed, just snap the barrel into the clamps
•Threaded shaft drives syringe plunger allowing smooth and
accurate movement
•Accepts syringe sizes: 10uL - 1mL gas tight luer tip
•Micrometer head has resolution of 10 microns per division
•Use for perfusion or withdrawl of liquids

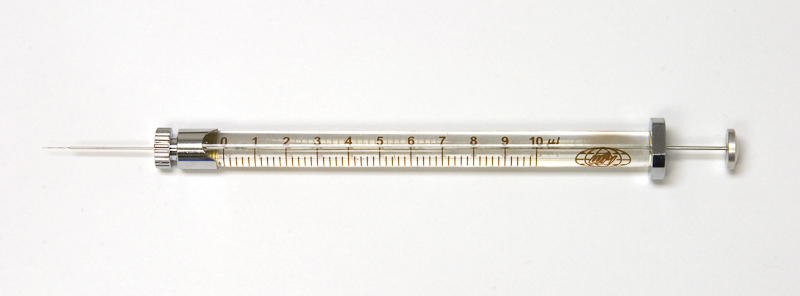

■ NanoFilTM NanoFil 10uL syringe
•World's
smallest dead volume injection syringe
•Use with WPI needles 33-36g
•Fits UMP3 microinjection pump

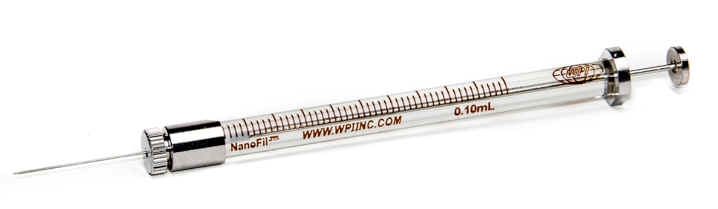

■ NanoFilTM NanoFil 100uL syringe
微升注射系統
•World's smallest dead volume injection syringe
•Use with WPI needles 33-36g
•Fits UMP3 microinjection pump
|
SYS-PM01D
|
Pressure
Manometer
壓力表（1
psi）
|
|
SYS-PM01R
|
Pressure
Manometer Rechargeable
壓力表,可充電（1
psi）
|
|
SYS-PM015D
|
Pressure
Manometer
壓力表（15
psi）
|
|
SYS-PM015R
|
Pressure
Manometer, Rechargeable 壓力表,可充電（15
psi）
|
|
SYS-PM0100D
|
Pressure
Manometer
壓力表（100
psi）
|
|

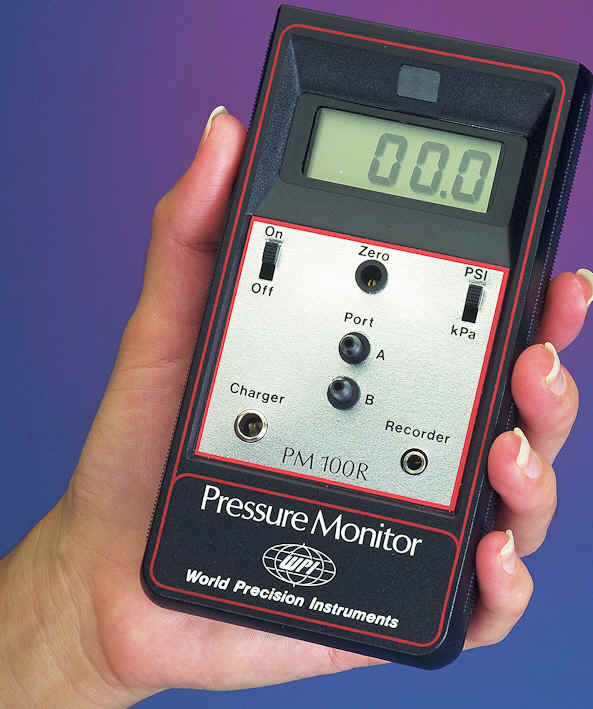

SYS-PM0100R
|
Pressure
Manometer, Rechargeable
壓力表,可充電（100
psi）
|
|
CBL
102 |
Mini-Phone-to-BNC
Cable Mini-電話線BNC線纜
|

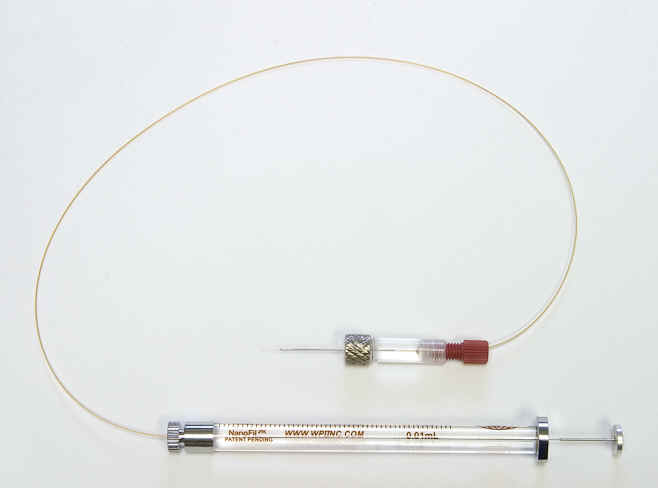

RPE-KIT: Retinal Pigment Epithelium（RPE）injection kit
(視網膜色素上皮注射工具包 )
SilFlex
tubing, gasket, holder, and blunt tipmix
(SilFlex管,
墊片,
夾持器,
鈍頭針頭)
IO-K
眶內注射工具包
(SilFlex
tubing, holder, gasket, and beveled tipmix)
(SilFlex管, 墊片, 夾持器, 斜面針頭)

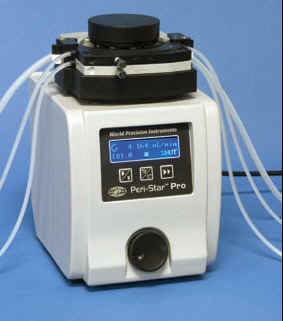

■ PERIPRO-2H Peri-Star Pro
雙通道式高速幫浦
•Fluid Flow Range:
0.8-280mL/min: #17 tubing: 2.9-290mL/min
•Tubing Range: 3.1-6.4mm ID
•Rotor Speed Range: 1-100rpm
•110/220V switchable
■ PERIPRO-8L Peri-Star Pro
八通道式低速幫浦
•Fluid Flow Range: 0.1-80mL/min; #14 tubing: 0.2-19mL/min
•Tubing Range: 0.5-2.4mm ID
•Rotor Speed Range: 1-100 rpm
•110/220V switchable
■ PERIPRO-4H Peri-Star Pro
四通道式高速幫浦 •Fluid Flow Range: 0.8-280 mL/min:
#17 tubing: 2.9-290 mL/min •Tubing Range: 3.1-6.4 mm ID •Rotor Speed Range: 1-100 rpm •110/220V switchable
■ PERIPRO-4L Peri-Star Pro
四通道式低速幫浦
•Fluid Flow Range: 0.1-80mL/min; #14 tubing: 0.2-18mL/min
•Tubing Range: 0.5-2.4 mm ID
•Rotor Speed Range: 1-100 rpm
•110/220V switchable
■ 500282 MityFlex Peristaltic Pump
MityFlex型蠕動幫浦
•Flow Rate: 1.7 to 800 mL/min •Variable speed reversible •RPM Range 8-228

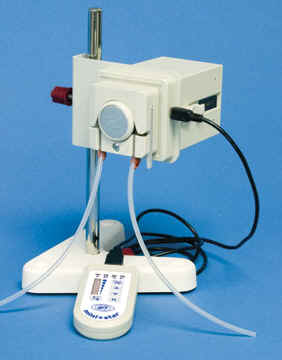

■ MINISTAR Miniature DC Peristaltic Pump
•Flow
Range: 0.06-14.0mL/min
•Speed: 1-50.0 rpm, forward/reverse
•Stand not included
■ A L-1000 Programmable Syringe Pump
•Accepts syringe sizes: 1-60mL, or 0.5-5 uL •Programmable, economical, verstaile •Up to 100 pumps can be daisy-chained
together via RS232 network •Single pump

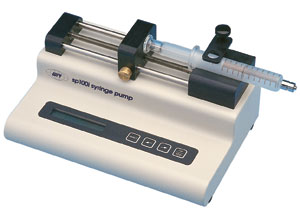

■ SP100i Single-Syringe Infusion Pump
單針筒輸液幫浦 •Accepts syringe sizes: 10uL - 50mL •Minimum Flow Rate: 0.1 uL/hr (10 uL syringe) •Maximum Flow Rate: 519 mL/hr (60 mL syringe) •95-135 V, 50 Hz
.jpg)

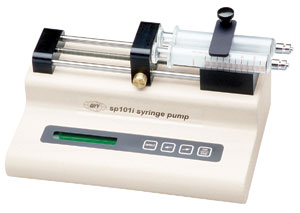

■ SP101i Two-Syringe Microdialysis Pump
雙針筒微透析式幫浦
•Accepts syringe sizes: 10uL - 10mL (two)
•Minimum Flow Rate: 0.001 uL/min (10 uL syringe)
•Maximum Flow Rate: 0.351 mL/min (10 mL syringe)
•95-135 V, 50 Hz
■ SP200i Two-Syringe Infusion Pump
雙針筒輸液幫浦 •Accepts syringe sizes: 10uL - 140mL (two) •Minimum Flow Rate: 0.001 uL/hr •Maximum Flow Rate: 145 mL/min (140 mL syringe) •95-135 V, 50 Hz

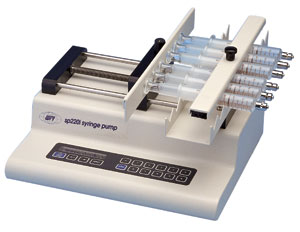

■ SP220i Multi-Syringe Infusion Pump
多針筒輸液幫浦 •Accepts syringe sizes: 10uL - 10mL (two);
10 uL to 60 mL (six); 10 uL to 140 mL (four)
•Minimum Flow Rate: 0.001 uL/hr
•Maximum Flow Rate: 21 mL/min (10 mL syringe)
•95-135 V, 50 Hz

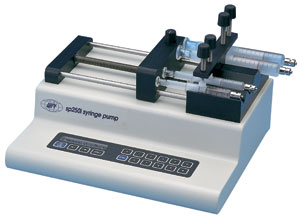

■ SP250i Four-Syringe Nanoliter Infusion Pump
四針筒Nanoliter輸液幫浦 •Accepts syringe sizes: 10uL - 10mL
(four) syringes may be different sizes •Minimum Flow Rate: 0.001 uL/hr •Maximum Flow Rate: 20.91 mL/min (10 mL syringe) •95-135 V, 50 Hz

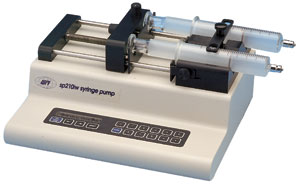

■SP210iw Two-Syringe Infusion/Withdrawl Pump
雙針筒輸液/回抽式幫浦
•Accepts
syringe sizes: 10uL - 140mL (two)
•Minimum Flow Rate: 0.001 uL/hr
•Maximum Flow Rate: 145 mL/min (140 mL syringe)
•95-135 V, 50 Hz

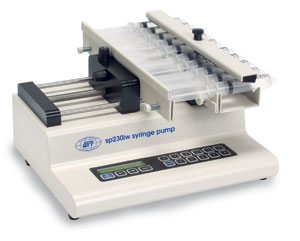

■ SP230iw Multi-Syringe Infusion/Withdrawl Pump
多針筒輸液/回抽式幫浦 •Accepts syringe sizes: 10uL - 10mL (two);
10 uL to 60 mL (six); 10 uL to 140 mL (four) •Minimum Flow Rate: 0.001 uL/hr (10 uL syringe) •Maximum Flow Rate: 21 mL/min (10 mL syringe) •95-135 V, 50 Hz

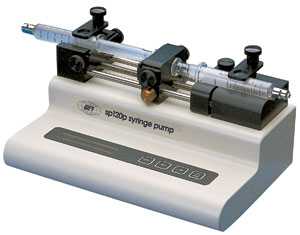

■ SP120p Two-Syringe Push-Pull Pump
•Accepts syringe sizes: 10uL - 10mL (two)
•Minimum Flow Rate: 0.1 uL/hr (10 uL syringe)
•Maximum Flow Rate: 125 mL/hr (10 mL syringe)
•95-135 V, 50 Hz

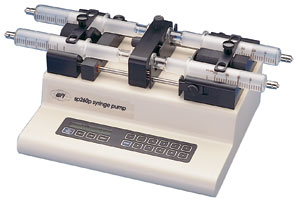

■ SP260p Four-Syringe Push-Pull Pump
四針筒推-拉式幫浦
•Accepts syringe sizes: 10uL - 60mL
•Minimum Flow Rate: 0.001 uL/hr
•Maximum Flow Rate: 86 mL/hr (60 mL syringe)
•95-135 V, 50 Hz
■ SP210c Continuous Cycle Syringe pump
連續循環式針筒幫浦
•Accepts syringe sizes: 10uL - 60mL
•Minimum Flow Rate: 0.001 uL/hr
•Maximum Flow Rate: 86 mL/hr (60 mL syringe)
•95-135 V, 50 Hz
