WPI Micromanipulators, Stands...顯微操作儀

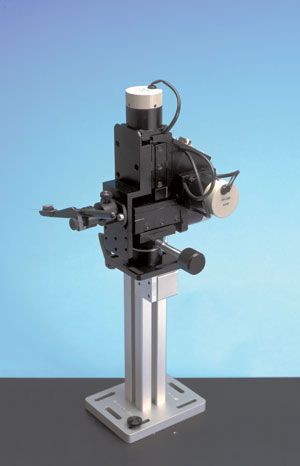

■ PPM5000 PiezoPatch Micromanipulator
顯微操作儀 •Piezo-motor driven •Ultra high resolution (<1 nm/step) •Super low drift (<4 nm/h)

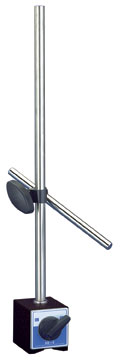

■ M1L Magnetic Stand 磁性支架 •Main Post Diameter: 12 mm •Sub Post Diameter: 10 mm •Height: 356 mm •Not for use with the KITE or M3301 (See M10)

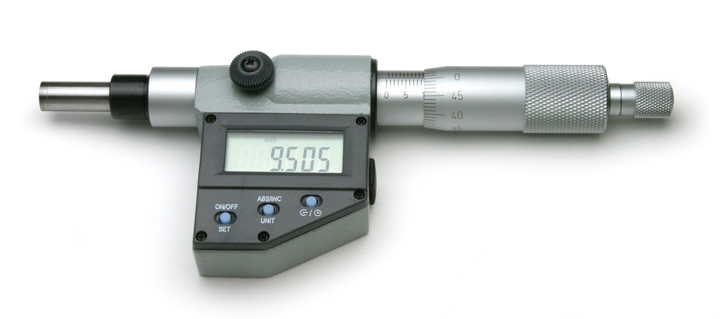

■ 502102 Non-Rotating Spindle Micrometer Head
非轉動軸測微頭

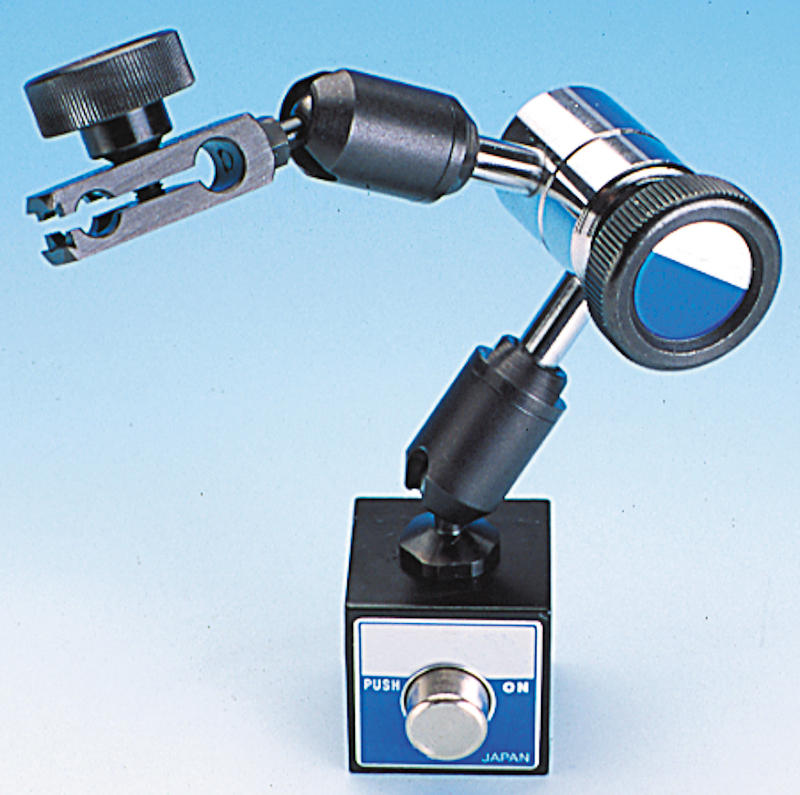

■ MB2 Magnetic Stand - Compact 磁性支架 •Clamp hole adjustable from 5 to 6.5 mm

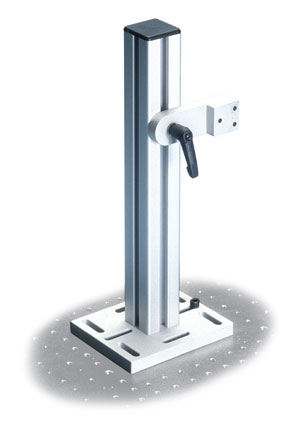

■ 501622 Universal Micromanipulator Stand
萬用顯微操作儀支架 •Height: 30 cm •Includes one Rotation Clamp

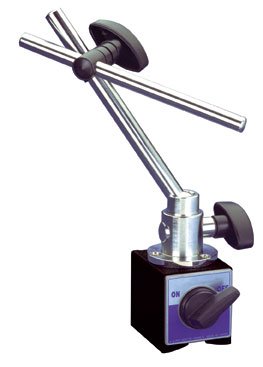

■ M8 Magnetic Stand with Balljoint
磁性支架，具球狀關節 •Main post rotates 360 degrees •Main Post Diameter: 12 mm •Sub Post Diameter: 10 mm
■ SYS-MPM10 Piezo-translator for DC3001 Manipulator
壓電位移器，用於DC3001操作儀 •High speed penetration •Precise control •Use with DC3001 micromanipulator

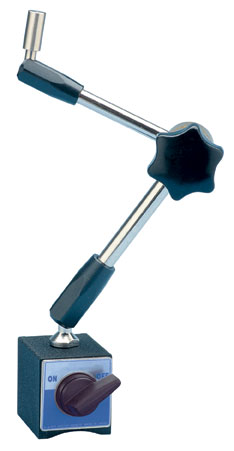

■ M9 Magnetic Stand Rotatable
磁性支架，可旋轉 •Three rotatable joints lock with one clamp •Sub Post Diameter: 12 mm

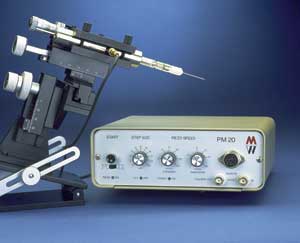

■ SYS-MPM20 Piezo-translator for M3301 Manipulator
壓電位移器，用於M3301操作儀 •Efficient tool for intracellular injection •Use with M3301 micromanipulator

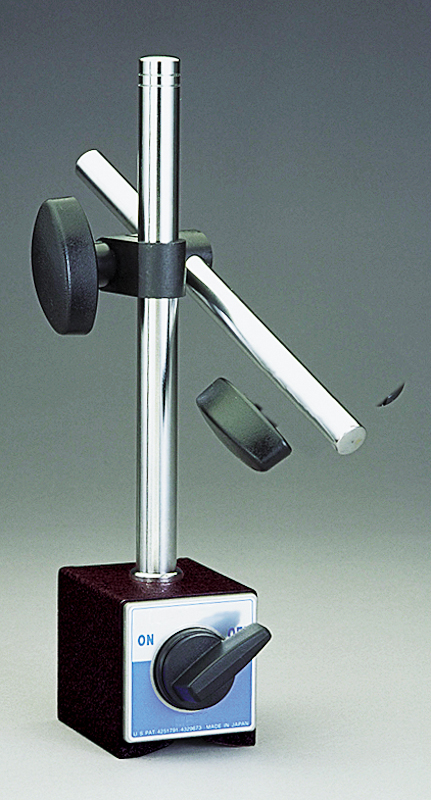

■ M10 Magnetic Stand 磁性支架 •Main Post Diameter: 14 mm •Sub Post Diameter: 12 mm •Height: 178 mm

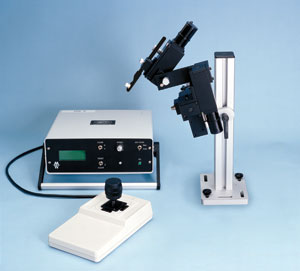

■ SM325 Programmable Motorized Micromanipulator & Controller
可編程式電動顯微操作儀及控制器 •Suitable for patch clamp and IVF •Low noise, high stability, and user-friendly software interface •Includes controller

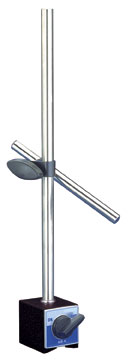

■ M10L Magnetic Stand 磁性支架 •Main Post Diameter: 14 mm •Sub Post Diameter: 12 mm •Height: 356 mm

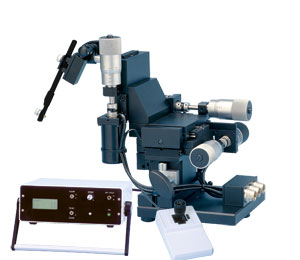

■ HS6-3 High Resolution Motorized Micromanipulator & Controller
高解析度電動顯微操作儀及控制器 •Manual controls & stepper motor dirves in all 3 axes. •Solid construciton eliminates vibrations and drifts. •Ideal for patch clamp and electrophysiology applications.
■ M11 Magnetic Stand - Flexible
磁性支架，可彈性調整 •Clamp hole adjustable from 6 to 8 mm •Main Post Diameter: 16 mm •Not suitable for micromanipulators

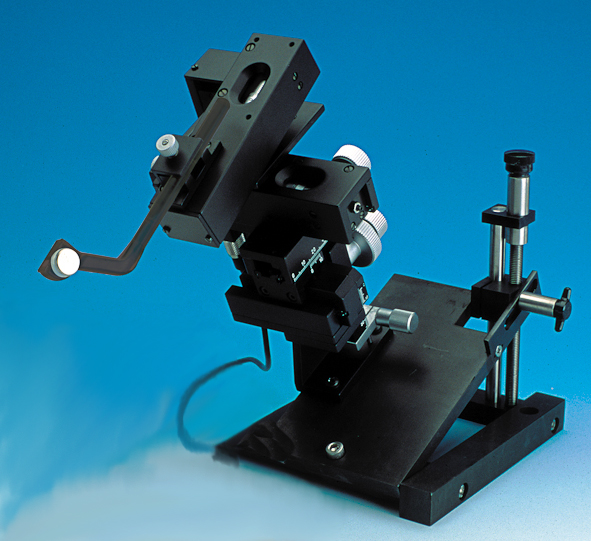

■ DC3001R Motorized Micromanipulator & Controller (right-hand)
電動顯微操作儀及控制器 •Manual coarse controls •Sophisticated controller allows control of all three axes •Controller not included
■ 500871 Magnetic Ball Joint 磁性球狀連接頭 •Holds 2kg! •Steel ball rotates freely 360 degrees on a 180 axis •M3 mounting screw on ball •Magnetic base threaded (M3)

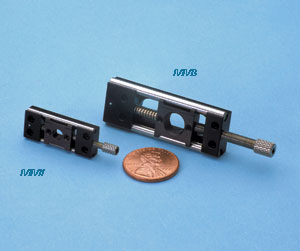

■ MM1 Miniature Micropositioner - Single Axis
小型微定位器-單軸 •3 mm travel •Precise and smooth motion •Less than 1 micron maximum wobble

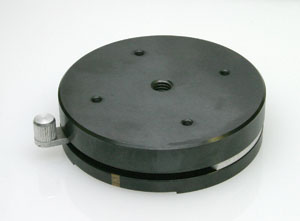

■ 501651 Magnetic Holding Device - Round
磁性固定裝置-圓形 •Ideal accessory for optical tables and vibration-free platform •Dimension: 75 mm OD

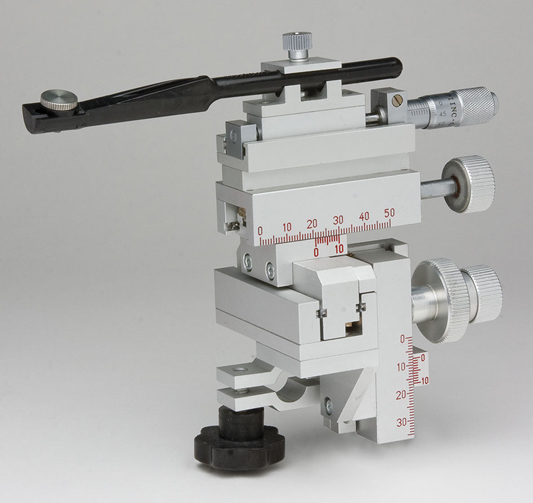

■ KITE Manual Micromanipulator (right-handed)
手動顯微操作儀 •Vernier scales allow readings to 0.1mm •x-axis fine control allows readings to 10 micrometers

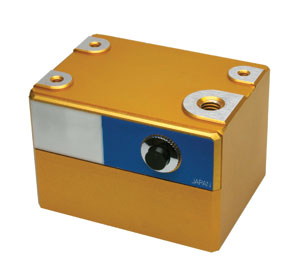

■ 501652 Magnetic Holding Device 磁性固定裝置 •Four tapped holes on top surface •Operate with one hand •Dimensions: 55 x 73 x 50 mm

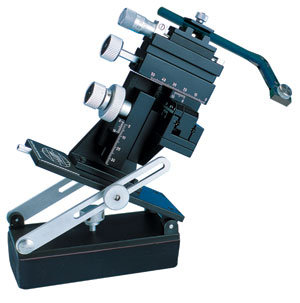

■ M3301 Manual Micromanipulator & Tilting Base (left-handed)
手動顯微操作儀及傾斜基座 Item#: M3301-M3-L
•Vernier scales for readings to 0.1mm & x-axis fine control for readings to 10um
•Control knobs project to rear; located in same vertical plane
•Tilting base included
•For M6 table
•Weight not included

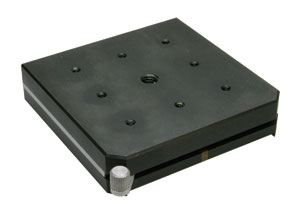

■ 501653 Magnetic Holding Device - Square
磁性固定裝置-方形 •Ideal accessory for optical tables and vibration-free platform •Dimension: 65 x 65 x 20 mm

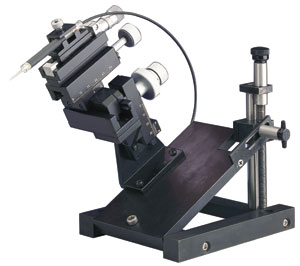

■ TBS Tilting Base with Screw Adjustment
傾斜基座，具調節螺絲 Item#: TBS
•Tilt angle up to 35 degrees •3.5-lb steel base provides stability •Adjust tilt angle by turning knob

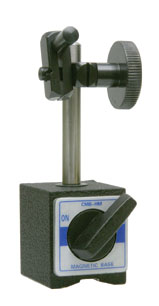

■ M7 Magnetic Stand - Compact 磁性支架 •Main Post Diameter: 7 mm •Height: 52 mm •Clamp Hole Diameter: 6 mm

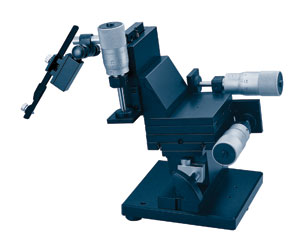

■ HS6 High Resolution Manual Micromanipulator
高解析度手動顯微操作儀 Item#: SYS-HS6
•Simple, precise, and durable •5 micrometer resolution •Engineered for stability and built on a 12-pound steel plate •For direct table top use
■ 5052 Steel Base Plate 底板 •8.5 x 12 inches •10 lbs

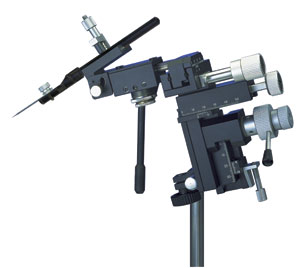

■ MMJ Joystick Controlled Micromanipulator (right-handed)
搖桿控制式顯微操作儀 •Easy steering motion that translates normal hand movement into
smooth sub-millimeter shifts •Fine adjustment for the X and Y axes can be controlled by the joystick

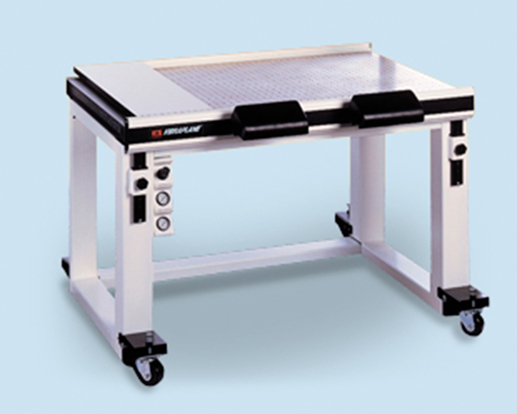

■ VFW Vibration Free Workstation 防震工作檯 •Vertical and horizontal vibration isolation •High performace Active-Air Suspension •Automatic Leveling •Additional sizes available
■ M325 Three-axis Manual Micromanipulator
三軸式手動顯微操作儀 •Built of precision micrometer-actuated linear slides •Can be configured for right or left hand use •Resolution is 10 micrometers

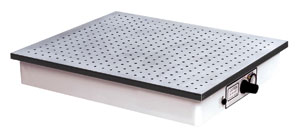

■ VFP Vibration Free Platform 防震平台 •Vertical and horizontal vibration isolation •High performace Active-Air Suspension •Automatic Leveling •Ferromagnetic stainless steel, 1/4-20 x 1 in centers
■ MD4 Dual Tool-Holder Micromanipulator (right-handed)
雙工具固定器顯微操作儀 •Scales allow coarse adjustment readings with an accuracy of 100 micrometers •X-axis fine control is achieved with a micrometer screw

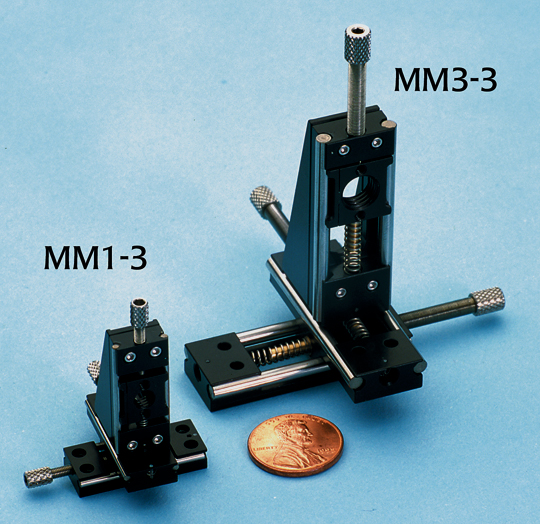

■ MM1-3 Miniature Micropositioner - Three Axes
小型微定位器-三軸 •3mm travel •Opens 0-4mm •Precise and smooth motion •Less than 1μm maximum wobble
■ M1 Magnetic Stand 磁性支架 •Main Post Diameter: 12 mm •Sub Post Diameter: 10 mm •Height: 176 mm •Not for use with the KITE or M3301 (See M10)

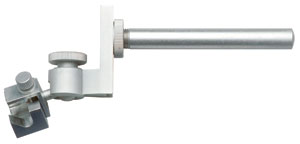

■ Ball Joint 球狀關節支架 Item#: 500475 •7 cm long •For 8 mm diameter holder
Item#: 500476 •4 cm long •For 4 mm diameter holder
