■ MM1 Miniature Micropositioner - Single Axis
   小型微定位器-單軸
•3 mm travel
•Precise and smooth motion
•Less than 1 micron maximum wobble

Features

Single stage measures only 5 x 11 x 26 mm with 3 mm travel. Provides precise and smooth motion with no backlash, positive spring loaded carriage, straight within 1 micron and less than 1 micron maximum wobble. Features fine 80 TPI screw adjustment. 10 mm square mounting surface has a 3.9 mm tapped center hole for transmission and/or mounting. Single X axis.

　

Specifications

Travel 3.175mm
Runout (maximum) 1.0μm
Reutrn Force ext.-comp. 113-312g
Weight 3g
Screw Pitch 80TPI
Backlash 0 (no ball bearings)
Sensitivity 0.5μm
Wobble (maximum) 10μrad (2 arc sec) (no ball bearings)
Thermal Stabilty 15°-75°C
Load Capacity
    Direct top or side load 0.25kg
    Push 0.5kg
    Retract ext-comp See return force as specified above
    Tilt 3 in-oz (210g-cm)
    Twist 1.5 in-oz (105g-cm)

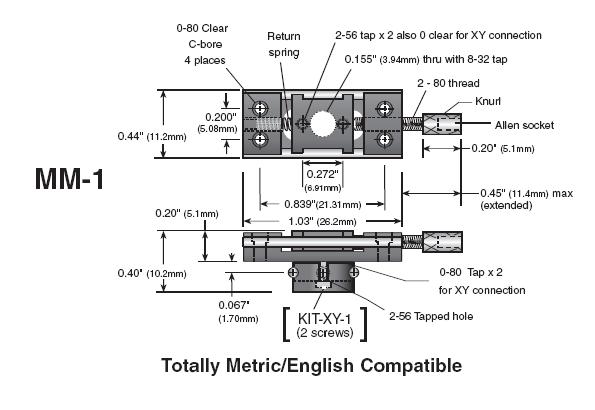

Dimensions (not including lead screw extension) -X Single Stage: 26.2 x 11.2 x 5.1mm
-XY (2-axis): 26.2 x 26.2 x 10.2mm
-XYZ (3-axis): 26.2 x 26.2 x 36.3mm
