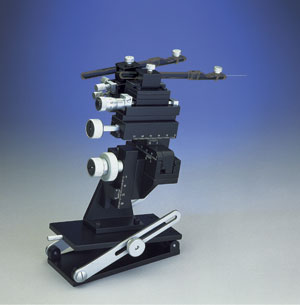

MD4 Dual Tool-Holder Micromanipulator (right-handed)

MD4 Dual Tool-Holder Micromanipulator (right-handed)

雙工具固定器顯微操作儀

Item#: MD4R

‧Scales allow coarse adjustment readings with an accuracy of 100 micrometers
‧X-axis fine control is achieved with a micrometer screw

Features

A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm. Supplied with TWO M3301EH electrode holder and a 12mm clamp for mounting on M10 Stand or other 12 mm supports. May also be mounted on optional M-3 Tilting Base.

Travel

Standard electrode: x-axis, 37 mm (fine, 10 mm); y-axis, 20 mm; z-axis, 25 mm. Additional electrode: x-axis, 7 mm; y-axis, 10 mm.

Specifications

Travel Range: X-axis Fine	10 mm
Travel Range: X-axis	37 mm
Travel Range: Y-axis	20 mm
Travel Range: Z-axis	25 mm
Resolution: X-axis Fine	10 µm
Resolution: X-axis	100 µm
Resolution: Y-axis	100 µm
Resolution: Z-axis	100 µm
Shipping Weight:	3 lbs (1.4 kg)

Application Notes

5052	Steel Base Plate
5479	Steel Base Plate
5464	5 lb. Weight for Tilting Base (shipping weight 8 lb.)
15873	Optional Angled Electrode Holder (13cm long)
500475	Ball Joint, 7cm long, for Ø 8mm Holder
500476	Ball Joint, 4cm long, for Ø 4mm Holder
M2	Additonal Ø 12mm Clamp
M-3	80° Tilting Base 6mm x 1mm screw
M4-C	Microscope Stage Adapter
M5	Additonal Ø 10mm Clamp
M6	Additonal Ø 1/2" Clamp
M9	Magnetic Stand Rotatable
M10	Magnetic Stand
M10L	Magnetic Stand
M3301EH	Replacement Electrode Holder (14cm long)
