KITE Manual Micromanipulator (right-handed)

■ KITE Manual Micromanipulator (right-handed)

手動顯微操作儀



‧Vernier scales allow readings to 0.1mm
‧x-axis fine control allows readings to 10 micrometers

Details

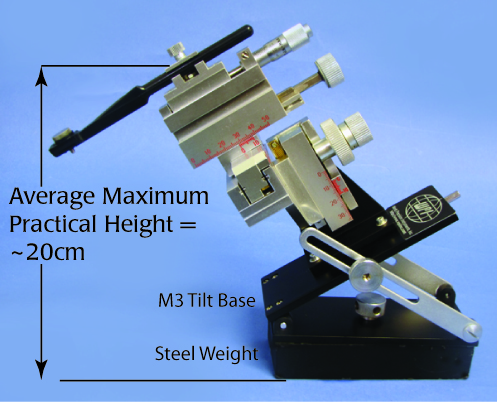

When the KITE is mounted on an an M-3 tilting base with the steel weight and tilted at 45°, the average maximum practical height from the tabletop to the center of the pivot point on the manipulator is approximately 20cm.

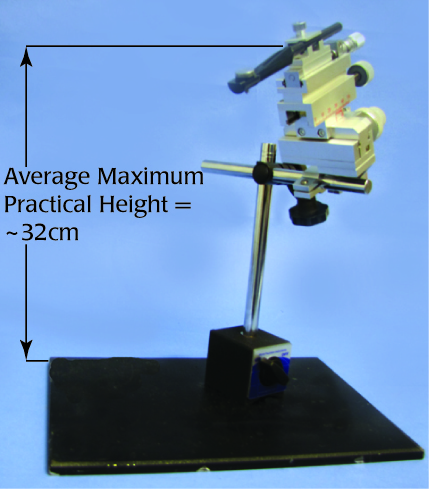

When the KITE is mounted on an an M10 with the steel plate, the average maximum practical height from the tabletop to the center of the pivot point on the manipulator is approximately 32cm.

Features

Vernier scales allow readings to 0.1 mm. X-axis fine control allows readings to 10 µm. Left- or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH.

Mounting

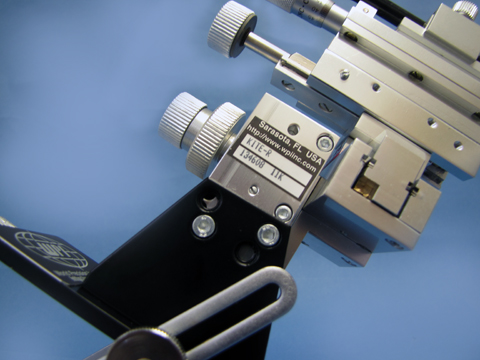

The KITE mounts with two screws as shown in the image below.

Specifications

Travel Range: X-axis Fine	10 mm
Travel Range: X-axis	37 mm
Travel Range: Y-axis	20 mm
Travel Range: Z-axis	20 mm
Resolution: X-axis Fine	0.01
Resolution: X-axis	0.1 mm
Resolution: Y-axis	0.1 mm
Resolution: Z-axis	0.1 mm
Shipping Weight:	3 lbs (1.4 kg)

Accessories

7363-4	Enzol Enzymatic Detergent, 1 gallon
7364	Cidex Disinfecting Solution
91580	Microsensor Cable
47510	ProGuide Position/Holder with Base
47520	ProGuide Position/Holder
47530	ProGuide Pluse Position/Holder with fina adjustment
47540	ProGuide Plus with Base
SNAP25	SNAP, 25mg vial
SNAP50	SNAP, 50mg vial
SNAP100	SNAP, 100mg vial
