WPI offers a wide spectrum of high-quality glass capillaries. We take pride in our ability to ship your glass order within 48 hours. If you need a special glass that does not appear in our catalog,please call us, We will make every effort to provide it for you.

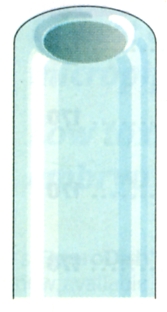

Fire-Polished
glass capillaries are easier to insert into microelectrode holders
without damaging the gasket. More importantly, fire-polished glass won’t
scratch the chloridized wire used in a recording electrode.
Fire-polishing does not affect the glass’s mechanical or electrical
properties.
Borosilicate
glass capillaries:Close dimen-sional tolerances assure microelectrode
uniformity and reproducibility. Available in one-, two-, three-, five,-
and seven-barrel configurations; a complete range of single barrel
thin-wall sizes, and a variety of special configurations. Capillaries with
filaments contain a solid filament fused to the inner wall, which speeds
filling of electrodes. Capillaries with or without inner filaments are
available for making microelectrodes in a wide range of diameters.
Single
Barrel standard wall thickness capil-laries are offered either with or
without inner fila-ments for quick filling in a variety of lengths and
diameters. Two usable electrodes can be made from one 6-inch length.
Thin
Wall single barrel capillaries are offered both with or without inner
filaments. The concen-tricity of this material provides excellent
strength. Micropipettes made from thin wall capillaries have fine tips
with a short taper.
Note:Because
electrode tips erode when left filled with saline solutions for long
periods, electrodes should be made and filled immediately prior to use.
|
Single-Barrel
Standard 7740 Borosilicate Glass Tubing |
|||||
|
Length |
OD（mm） |
ID（mm） |
Filament |
Fire-Polished |
Item |
|
3
in.（76
mm） |
1.0 |
0.58 |
V |
|
1B100F-3 |
|
3
in.（76
mm） |
1.0 |
0.58 |
|
|
1B100-3 |
|
3
in.（76
mm） |
1.2 |
0.68 |
V |
|
1B120F-3 |
|
3
in.（76
mm） |
1.2 |
0.68 |
|
|
1B120-3 |
|
3
in.（76
mm） |
1.5 |
0.84 |
V |
|
1B150F-3 |
|
3
in.（76
mm） |
1.5 |
0.84 |
|
V |
1B150-3 |
|
4
in.（100
mm） |
1.0 |
0.58 |
V |
V |
1B100F-4 |
|
4
in.（100
mm） |
1.0 |
0.58 |
|
V |
1B100-4 |
|
4
in.（100
mm） |
1.2 |
0.68 |
V |
V |
1B120F-4 |
|
4
in.（100
mm） |
1.2 |
0.68 |
|
|
1B120-4 |
|
4
in.（100
mm） |
1.5 |
0.84 |
V |
V |
1B150F-4 |
|
4
in.（100
mm） |
1.5 |
0.84 |
|
V |
1B150-4 |
|
4
in.（100
mm） |
2.0 |
1.12 |
V |
|
1B200F-4 |
|
4
in.（100
mm） |
2.0 |
1.12 |
|
V |
1B200-4 |
|
6
in.（152
mm） |
1.0 |
0.58 |
V |
|
1B100F-6 |
|
6
in.（152
mm） |
1.0 |
0.58 |
|
|
1B100-6 |
|
6
in.（152
mm） |
1.2 |
0.68 |
V |
|
1B120F-6 |
|
6
in.（152
mm） |
1.2 |
0.68 |
|
|
1B120-6 |
|
6
in.（152
mm） |
1.5 |
0.84 |
V |
|
1B150F-6 |
|
6
in.（152
mm） |
1.5 |
0.84 |
|
|
1B150-6 |
|
6
in.（152
mm） |
2.0 |
1.12 |
V |
|
1B120F-6 |
|
6
in.（152
mm） |
2.0 |
1.12 |
|
|
1B120-6 |
|
Thin-Wall
Single-Barrel Standard Borosilicate （Schott
Duran）Glass Tubing |
|||||
|
OD（mm） |
ID（mm） |
FIL |
Fire-Polished |
Length |
Item |
|
1.0 |
0.75 |
V |
|
3
in.（76
mm） |
TW
100F-3 |
|
1.0 |
0.75 |
|
|
3
in.（76
mm） |
TW
100-3 |
|
1.2 |
0.90 |
V |
V |
3
in.（76
mm） |
TW
120F-3 |
|
1.2 |
0.90 |
|
|
3
in.（76
mm） |
TW
120-3 |
|
1.5 |
1.12 |
V |
|
3
in.（76
mm） |
TW
150F-3 |
|
1.5 |
1.12 |
|
V |
3
in.（76
mm） |
TW
150-3 |
|
1.0 |
0.75 |
V |
|
4
in.（100
mm） |
TW
100F-4 |
|
1.0 |
0.75 |
|
V |
4
in.（100
mm） |
TW
100-4 |
|
1.2 |
0.90 |
V |
|
4
in.（100
mm） |
TW
120F-4 |
|
1.2 |
0.90 |
|
|
4
in.（100
mm） |
TW
120-4 |
|
1.5 |
1.12 |
V |
|
4
in.（100
mm） |
TW
150F-4 |
|
1.5 |
1.12 |
|
V |
4
in.（100
mm） |
TW
150-4 |
|
1.0 |
0.75 |
V |
|
6
in.（152
mm） |
TW
100F-6 |
|
1.0 |
0.75 |
|
V |
6
in.（152
mm） |
TW
100-6 |
|
1.2 |
0.90 |
V |
V |
6
in.（152
mm） |
TW
120F-6 |
|
1.2 |
0.90 |
|
|
6
in.（152
mm） |
TW
120-6 |
|
1.5 |
1.12 |
V |
|
6
in.（152
mm） |
TW
150F-6 |
|
1.5 |
1.12 |
|
V |
6
in.（152
mm） |
TW
150-6 |
