Current
Generation
Gated
or manual current generation for histological
marking, iontophoresis, or cell stimulation.
Portability
DAM
series amplifiers can be used as standalone units on
any tabletop, or use optional clamp-mounting
hardware to locate them conveniently within the work
area. Alternatively, a pair of amplifiers can be
mounted into a standard equipment rack with a rack
mount kit (#3484 ). A variety of hook up accessories
are available to configure your application.
Specifications
|
INPUT
IMPEDANCE
|
10^12
ohm, common mode and differential
|
|
INPUT
LEAKAGE CURRENT
|
50pA
(typical)
|
|
MAX.
DC DIFFERENTIAL SIGNAL
|
±2.5V
(DAM 50)
|
|
GAIN
|
AC:
100x, 1000x, 10000x, DC: 10x, 100x, 1000x
(DAM50)
|
|
COMMON
MODE REJECTION RATIO
|
100dB
@ 50/60Hz
|
|
INPUT
CAPACITANCE
|
20pF
|
|
AC
MODE NOISE
|
0.4uV
RMS (2uV p-p) 0.1-100Hz
|
|
AC
MODE NOISE
|
2.6uV
RMS (10uV p-p) 1 Hz-10kH
|
|
DC
MODE NOISE (DAM50)
|
(DAM50)
7.5uV RMS (30uV p-p) 3-10kHz
|
|
BANDWIDTH
FILTER SETTINGS:AC Mode
|
Low
frequency, 0.1, 1, 10, 300Hz
|
|
BANDWIDTH
FILTER SETTINGS: DC Mode(DAM50)
|
High
frequency, 0.1, 1, 3, 10kHz
|
|
OUTPUT
CONNECTORS
|
BNC
on DAM50;
|
|
OUTPUT
VOLTAGE SWING
|
±8V
|
|
OUTPUT
IMPEDANCE
|
470
ohm
|
|
BATTERY
TEST
|
Audible
tone
|
|
CALIBRATOR
SIGNAL
|
10Hz
square wave
|
|
POSITION
|
Approximately
250mV
|
|
EXTERNAL
COMMAND
|
Input
Voltage ±10 V commands
|
|
AC
or DC current waveform
|
±50uA
max. amplitude @ 200ohm
|
|
BATTERIES
|
2
x 9V alkaline (included)
|
|
DIMENSIONS:DAM50
|
8
x 4 x 1.75 in. (20.3 x 10.2 x 4.4 cm)
|
|
SHIPPING
WEIGHT
|
3.5
lb (1.6 kg)
|

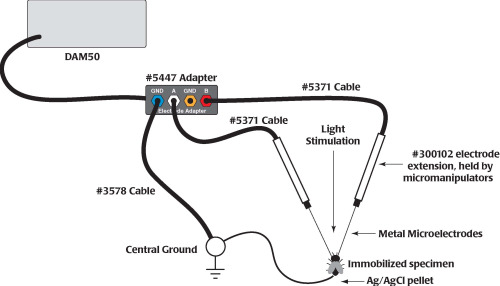

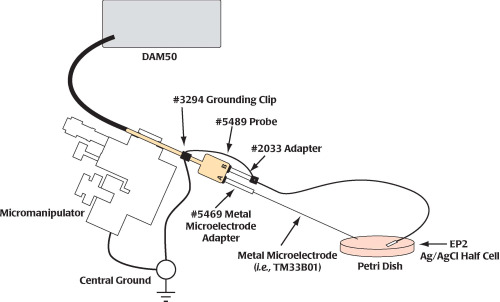

Application Examples

|
