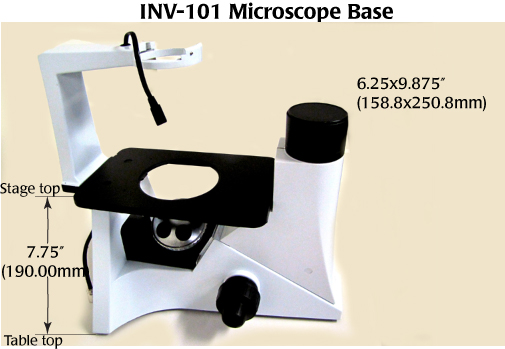

■ INV-101 Trinocular Inverted Microscope 倒立三目顯微鏡
•Camera Sold Separately •Fixed Stage - optics move during focusing -excellent for patch
clamp and brain slice recording •Phase contrast at 10X and 20X •160 x 260 mm stage •Infinity Optical System Trinocular Head
Ideal for video/photography. Centering eyepiece for phase objective. EW 10X /22 extra wide field eyepieces.
Focus
Coarse adjustment: range of +8 to –3mm. Fine adjustment: 0.002mm
Stage
160 x 250mm. Coaxial drive controls. Optional mechanical stage: X-Y coaxial control; 120 x 78 mm range of traverse.
Nosepiece & Condenser
Quintuple nosepiece. Abbe condenser with 10X and 20X phase.
Accessories included:
Green and neutral filters, dust cover
Camera to Microscope Configurations
Specifications
| OBJECTIVE DISTANCE | NA | Working |
| Plan-achromatic 4X | 0.1 | 25.2mm |
| Plan-Achromatic Phase Contrast 10X | 0.25 | 11mm |
| Plan-Achromatic Phase Contrast 20X | 0.4 | 6.0mm |
| Plan-Achromatic 40X | 0.6 | 3.2mm |
| EYEPIECE | Field of View | |
| Wide field 10X | 18mm | |
| Transmitted Illumination | 6V 30W Halogen Lamp | |
| Condenser Long Working Distance | 0.3/50mm | |
| STAGE | ||
| Fixed stage with mechanical stage and specimen clip | ||
| Area | 250mm x 160mm | |
| Movement range | 120mm x 78mm | |
| Drive Controls | Coaxial | |
| Mechanical Stage | X-Y Coaxial | |
| HEAD | Trinocular Head Centering eyepiece for phase objective EW10X/22 extra wide field eyepieces |
|
| NOSEPIECE | Quintuple nosepiece | |
| FOCUS | ||
| Coarse adjustment | +8 to –3mm | |
| Fine adjustment | 0.002mm | |
| Vertical objective movement | ||
| WEIGHT | 24.0 lbs. | |
