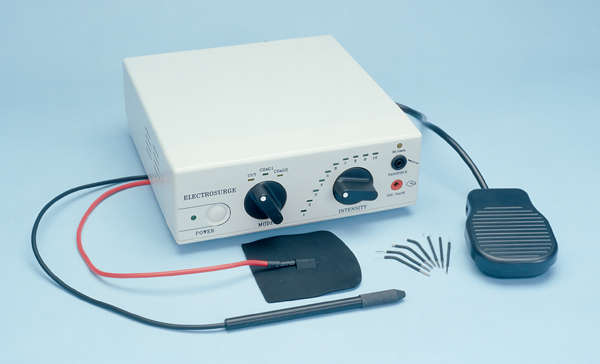

WPI Economy Electrosurgical Unit Item#: 501274
- 110 volt
Details
This economicallyprices electrosurgical unit has 10 levels of output intensity, three operatioinal modes (cut, coagulate, and cut/coagulate), and various choices of electrodes.
Ready-to-useThe unit comes complete and ready-to-use with a handpiece, indifference plate, footswitch, and one of each electrodes. All accessories can also be ordered separately.
Electrosurgery utilizes alternating current at radio frequescies to cut
and coagulate. Using this method, the current enters the patient's body
and the patient becomes a part of the electrical circuit. This requires
the use of a return, or indifference, plate.
| OPERATION FREQUENCY | 1.5 MHz |
| STABLE & FINE POWER SETTING | 10 Steps |
| POWER SUPPLY | 115V ± 10% - 50/60Hz 1.8A, 210VA, 230V ± 10% - 50/60Hz 0.9A, 210VA |
| OUTPUT POWER | 70 WATTS ± 5% |
| WORKING FRQUENCY | 1.5-1.7 MHZ ± 5% |
| DIMENSIONS | 24cm x 22cm x 8.5cm (lxwxh) |
| SHIPPING WEIGHT | 10 lb (4.5kg) |
