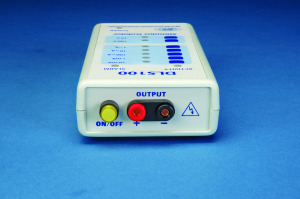

DLS100  Digital Linear Stimulus Isolator



  • Designed for use with the DS8000 digital stimulator
  • High isolation and fast signal rise and fall times
  • Two modes: current source and voltage source
  • Designed for Muscle applications

Optical Coupling

DLS100 connects to the DS8000 via a flexible cable through which it receives power and stimulus signals in a digital format. Up to eight DLS100 isolators can be connected independently to one DS8000. Very high isolation is achieved through the use of optical coupling of the digital signal and a galvanically isolated DC power supply within the DLS100. Unlike some other multi-channel isolators, this digital isolator can be located at the site of the experiment, allowing the use of short connecting leads and thereby preserving high isolation and fast signal rise and fall times.

Two modes

The DLS100 operates in two modes: current source or voltage source. In the current source mode, the output current is proportional to the amplitude and polarity of the signal generated by the DS8000. In the voltage source mode, the output voltage is proportional to the amplitude and polarity of the signal generated by the DS8000. The DLS100 has user-selectable push-button switches that select different current or voltage ranges (the full-scale current from 100 nA to 10 mA, or the 10V and 100V full-scale, respectively). Three status indicators on the DLS100 indicate power on, activity (presence of signal from DS8000) as well as an alarm (over-range condition) indicator. Over-range can occur when the resistance of the load (the experiment) is too high for the current or voltage that is demanded from the DLS100.



Specifications
CURRENT SOURCE MODE
Full-scale Current 10mA, 1 mA, 100uA, 10uA, 1uA, bipolar
Compliance Voltage ±100V
Output Impedance Greater than 100 Megohms
Zero-signal Leakage >0.01% of full-scale range setting ≤10mV @ 100V/10,000 Ohms, 10mA Scale = <1uA Leakage
Linearity Better than 0.05% of full-scale range setting
Bandwidth Range and load dependant: 20kHz with 10K load and 100uA or above range.
VOLTAGE SOURCE MODE
Full-scale Voltage ±100V
Maximum Current 10mA
Output Impedance Less than 1 ohm
Zero-signal Offset Less than 1mv
Linearity Better than 0.05% of full-scale range setting
Bandwidth 50kHz
ISOLATION
Resistance Greater than 1000 Megohms
Capacitance Less than 10pF, from output terminals to DS8000 and earth ground
POWER REQUIREMENTS +12 V and +5V, supplied by DS8000
DIMENSIONS 14 x 9 x 3.5 cm (5.5 x 3.5 x 1.5 in.)
OUTPUT TERMINALS Mini-banana jacks
CONNECTING CABLE 150 cm (5 ft)
